Closed-head Orbital Welding Machine MWF-18

This MWF-18 closed-head orbital welding machine is composed of integrated program-controlled welding power supply and welding head, and associated with an expert welding database that automatically generates welding data. Under the integration of these processes, pipe welding becomes extremely simple.

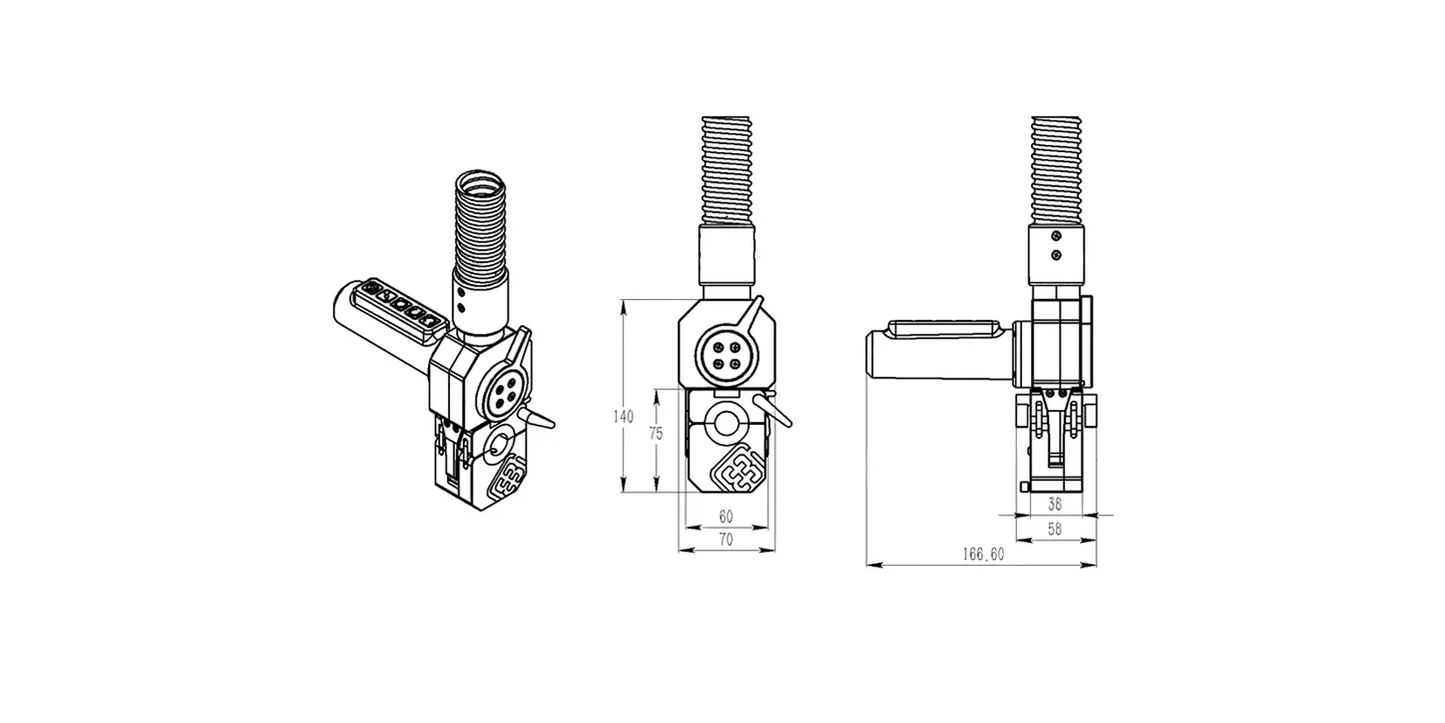

The welding head is compact. One can hold it only by one hand. It is with water-cooled and air circuit system, which guarantee itself from over-heating. It is made of precise, safe and durable materials. It shall work once the parameters (i.e., diameter, wall thickness) of pipes are inputted. The small dimensions of the MWF series make it ideal for applications where space is very restricted, such as food and beverage industry , aerospace, etc.

1. Welding pipe diameter(mm) : Φ4.0 mm - Φ17.1 mm;

2. Applicable wall thickness(mm) : ≤ 1.0 mm;

3. Tungsten electrode diameter : Φ1.6 mm;

4. Protective gas : Argon;

5. Cooling method : circular water-cooling system;

7. Weight(kg) : 6 kg;

9. Welding tongs handle is equipped with an operation button, convenient for operation, and improves work efficiency;
10. The welding tongs are used with the MWA-200 integrated control power supply;
