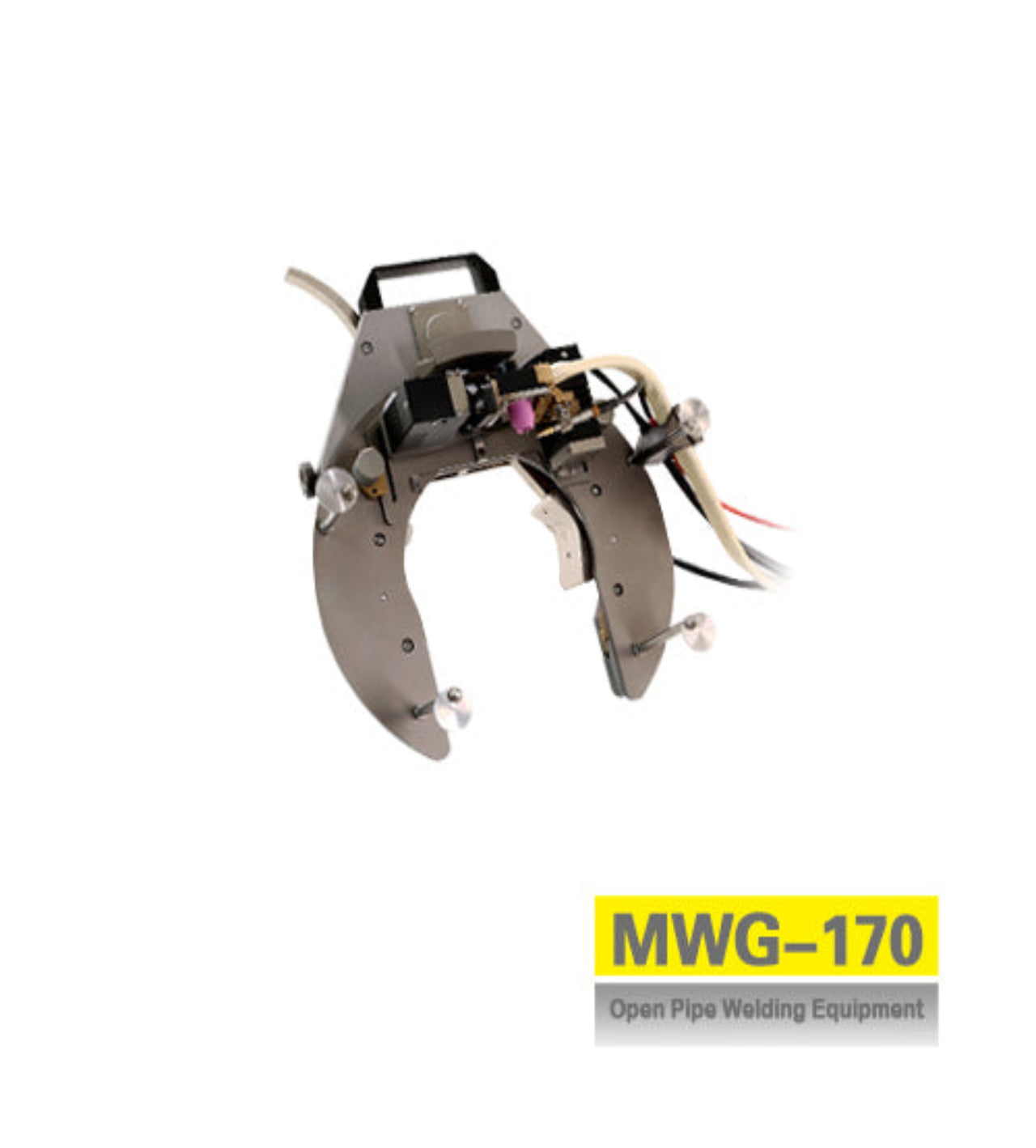

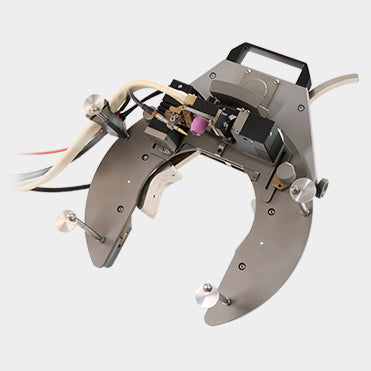

Open-head Orbital Welding Machine MWG-170

Product Description:

Expertly weld professional and sanitary pipes with the MWG-170 Open-head Orbital Welding Machine. This versatile machine is perfect for a wide range of industries, ensuring precise and efficient welding every time. Trust in its open-head design for precise and clean welds, making it a valuable addition to your welding equipment.

The MWG series of orbital welding head, which are impressive with a wide range of applications, are used where thin-walled stainless steel tubes are welded in tube installation. Due to the compact design and the equipped narrow weld head hosing, it is possible to weld even under narrow conditions.

The MWG-170 open head orbital welding machine with a welding range of 63-168 mm is applicable for tubes with a wall thickness of 2-10 mm and applicable for V-shaped beveling. It can be used for tube installation in fields of pressure vessels, boilers, petrochemical engineering, etc.

Technical Parameters:

Model	MWG-90	MWG-170	MWG-230	MWG-325
Welding Range	20-89 mm	63-168 mm	89-230 mm	159-325 mm
Wall Thickness	1-10 mm	2-10 mm	2-10 mm	2-10 mm
Protective Gas	Argon	Argon	Argon	Argon
Cooling Method	Circulating Water  Cooling System	Circulating Water Cooling System	Circulating Water Cooling System	Circulating Water Cooling System
Tungsten Diameter	2.4 mm	2.4 mm	2.4 mm	2.4 mm
Weight	40 kg	44 kg	70 kg	76 kg

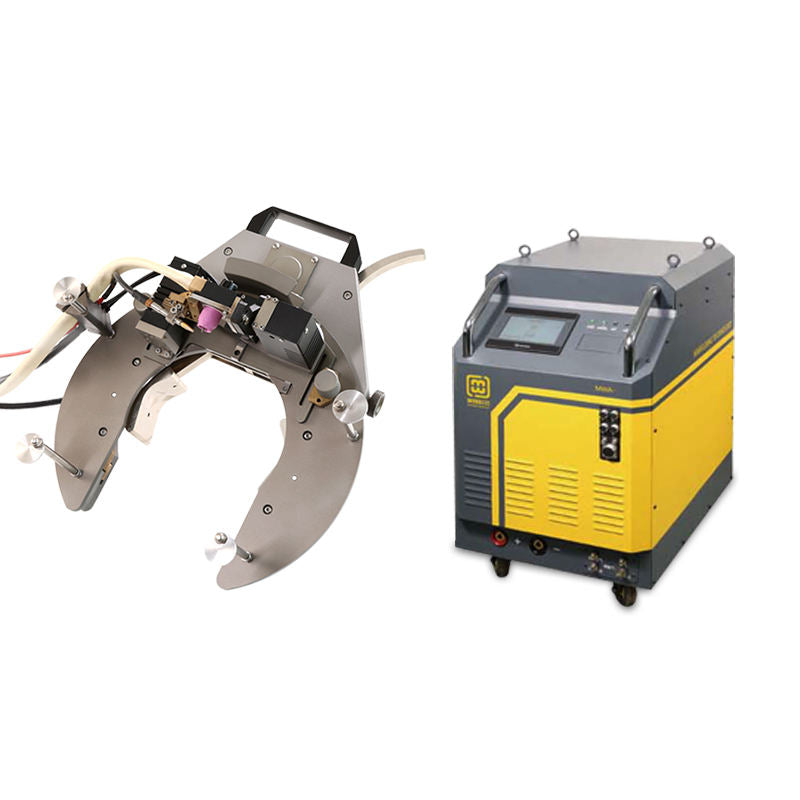

Power Supply	MWA-400	MWA-400	MWA-400	MWA-400
Manual Adjustable Angle of the Torch	≤45°	≤45°	≤45°	≤45°
Dimension	50*50*40 cm	50*50*40 cm	80*68*55 cm	80*68*55 cm
Suitable Materials	Carbon Steel, Stainless Steel	Carbon Steel, Stainless Steel	Carbon Steel, Stainless Steel	Carbon Steel, Stainless Steel
