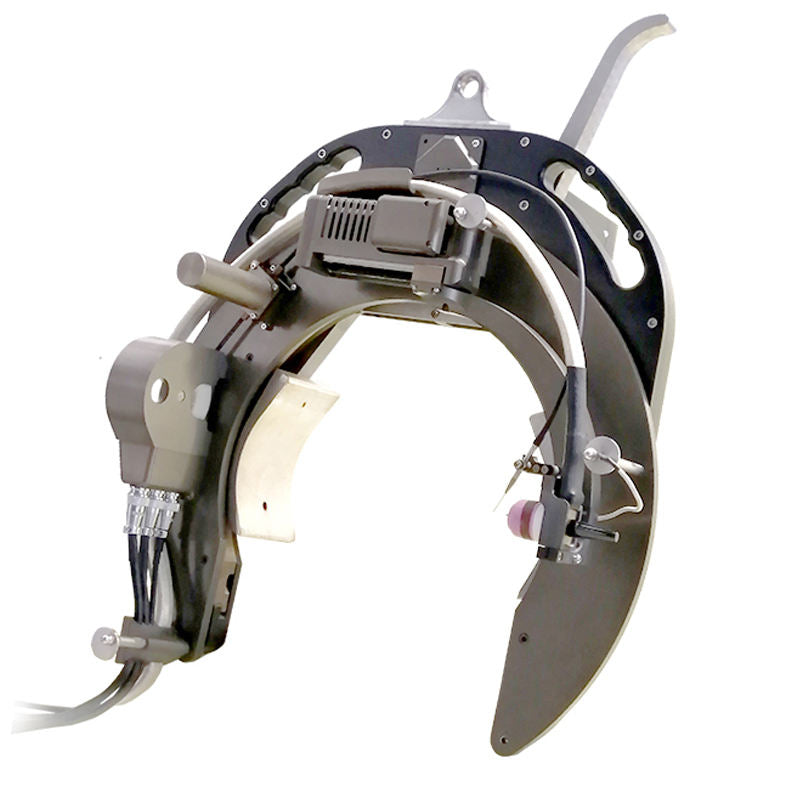

Open-head Orbital Welding Machine MWG-325
Open-head Orbital Welding Machine MWG-325
Regular price
$18,880.00 USD
Regular price
$25,999.00 USD
Sale price
$18,880.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Description:
Our range of open welding heads allows you to make very high-quality welds in minimal space. On these heads,you will find a mechanical tracking system to keep a constant arc height. The torch can tilt to weld at an angle.This type of machine can be used to weld carbon steel tubes. Open heads offer very wide welding possibilities thanks to the inclination of the torch and the addition of filler metal. The clamping range is achieved without the addition of jaws. The tracking system is by roller so as not to scratch the tube. All the parts in contact with the tube are made of stainless steel so as not to contaminate it. The MWG-325 open frame automatic orbital welding machine is equipped with an internal wire feeder together.
The orbital weld head MWG series, which are impressive with a wide range of applications, are used where thin-walled stainless steel tubes are welded in tube installation. Due to the compact design and the equipped narrow weld head hosing, it is possible to weld even under narrow conditions.
The MWG 325 open head orbital welding machine with a welding range of 159-325 mm is applicable for tubes with a wall thickness of 2-10 mm and applicable for V-shaped beveling. It can be used for tube installation in fields of pressure vessels, boilers, petrochemical engineering, etc.
Technical Parameters:
|
Model
|
MWG-90
|
MWG-170
|
MWG-230
|
MWG-325
|
|
Welding Range
|
20-89 mm
|
63-168 mm
|
89-230 mm
|
159-325 mm
|
|
Wall Thickness
|
1-10 mm
|
2-10 mm
|
2-10 mm
|
2-10 mm
|
|
Protective Gas
|
Argon
|
Argon
|
Argon
|
Argon
|
|
Cooling Method
|
Circulating
Water
Cooling
System
|
Circulating
Water
Cooling
System
|
Circulating
Water
Cooling
System
|
Circulating Water
Cooling
System
|
|
Tungsten Diameter
|
2.4 mm
|
2.4 mm
|
2.4 mm
|
2.4 mm
|
|
Weight
|
40 kg
|
44 kg
|
70 kg
|
76 kg
|
|
Power Supply
|
MWA-400
|
MWA-400
|
MWA-400
|
MWA-400
|
|
Manual Adjustable Angle of the Torch
|
≤45°
|
≤45°
|
≤45°
|
≤45°
|
|
Dimension
|
50*50*40 cm
|
50*50*40 cm
|
80*68*55 cm
|
80*68*55 cm
|
|
Suitable Materials
|
Carbon Steel, Stainless Steel
|
Carbon Steel, Stainless Steel
|
Carbon Steel, Stainless Steel
|
Carbon Steel, Stainless Steel
|
