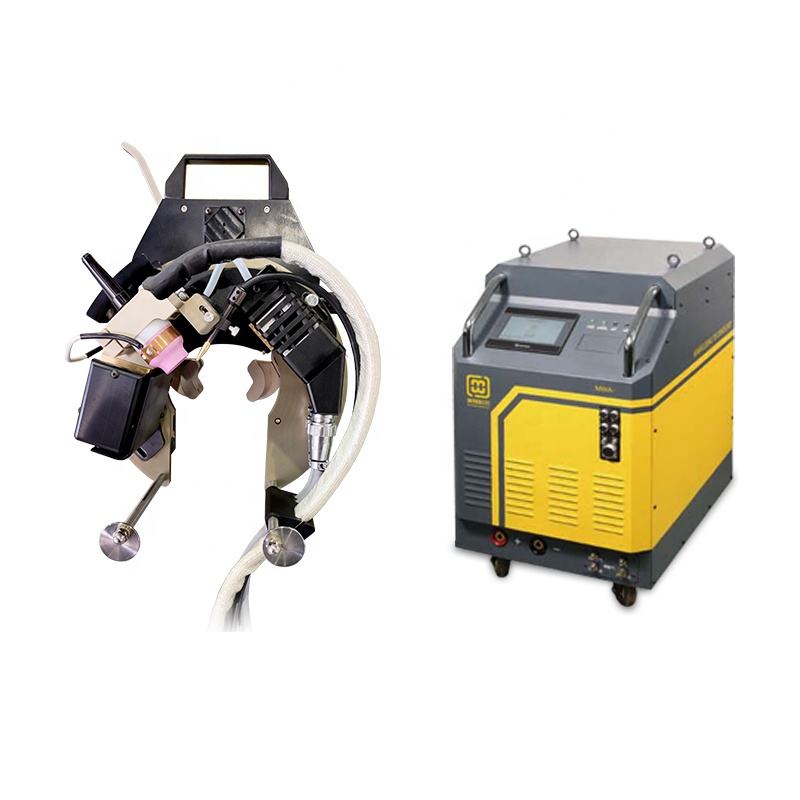

Open-head Orbital Welding Machine MWG-90
Open-head Orbital Welding Machine MWG-90
Regular price
$7,999.00 USD
Regular price
$9,999.00 USD
Sale price
$7,999.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Product Description:

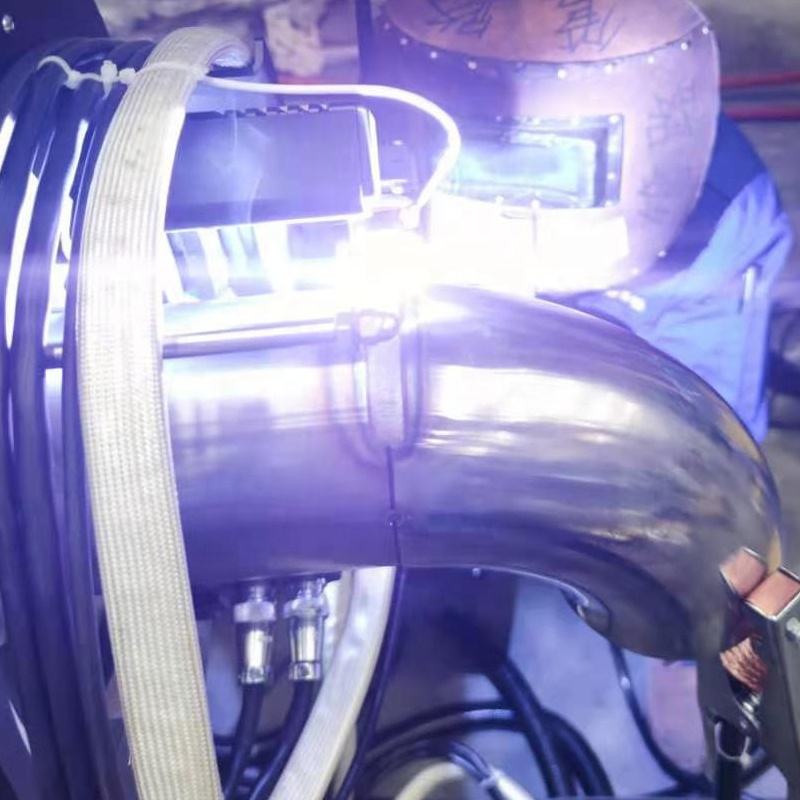

Efficiently and precisely weld pipes with the Open-head Orbital Welding Machine MWG-90. With its professional design and application in multiple industries, this machine ensures high-quality, sanitary welds. Increase productivity and quality control with this advanced welding solution.

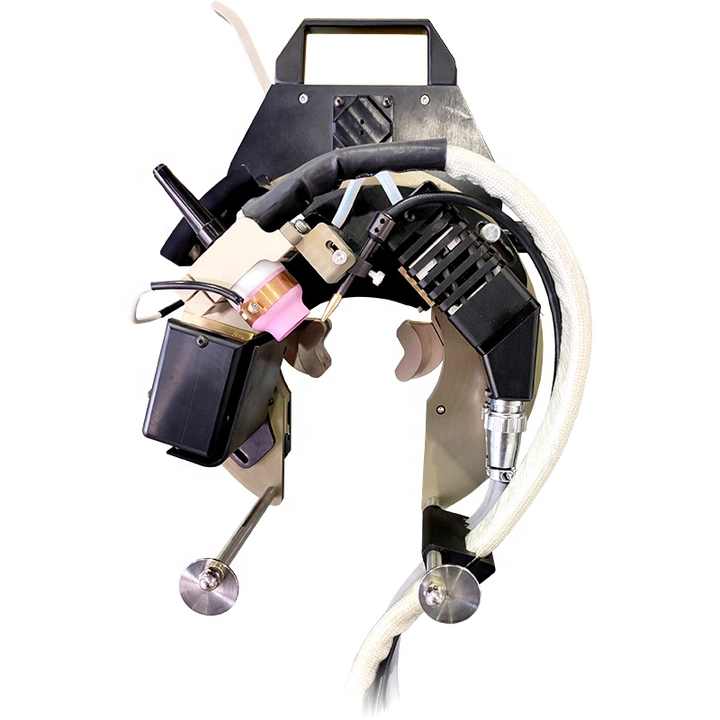

The orbital weld head MWG series, which are impressive with a wide range of applications, are used where thin-walled stainless steel tubes are welded in tube installation. Due to the compact design and the equipped narrow weld head hosing, it is possible to weld even under narrow conditions.

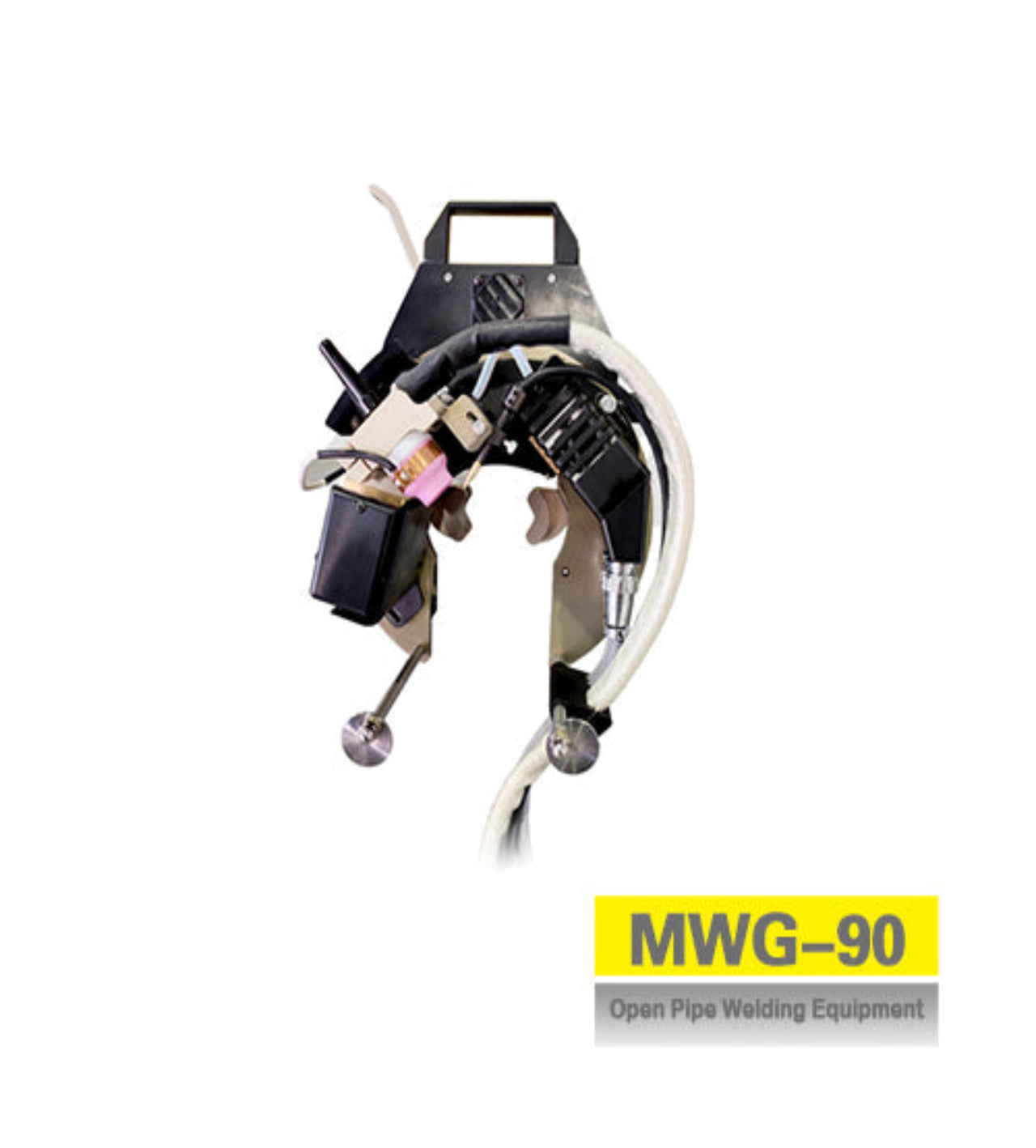

The MWG-90 open head orbital welding machine with a welding range of 20-89 mm is applicable for tubes with a wall thickness of 1-10 mm and applicable for V-shaped beveling. It can be used for tube installation in fields of pressure vessels, boilers, petrochemical engineering, etc.

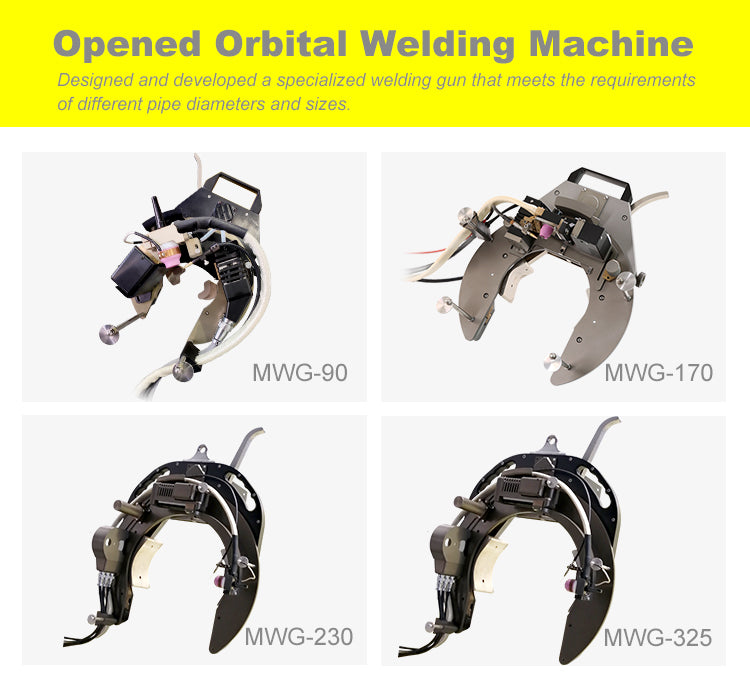

Technical Parameters:
Model
|
MWG-90
|
MWG-170
|
MWG-230
|
MWG-325
|
Welding range
|
20-89 mm
|
63-168 mm
|
130-230 mm
|
159-325 mm
|
Wall thickness
|
1-10 mm
|
2-10 mm
|
2-10 mm
|
2-10 mm
|
Protective gas
|
Argon
|
Argon
|
Argon
|
Argon
|
Cooling method
|
circulating water cooling
|
circulating water cooling
|
circulating water cooling
|
circulating water cooling
|
Tungsten diameter
|
2.4 mm
|
2.4 mm
|
2.4 mm
|
2.4/3.2 mm
|
Weight
|
59 kg
|
63 kg
|
76 kg
|
79 kg
|
Power supply
|
MWA-400
|
MWA-400
|
MWA-400
|
MWA-400
|
Manual adjustable angle of the torch
|
≤45°
|
≤45°
|
≤45°
|
≤45°
|

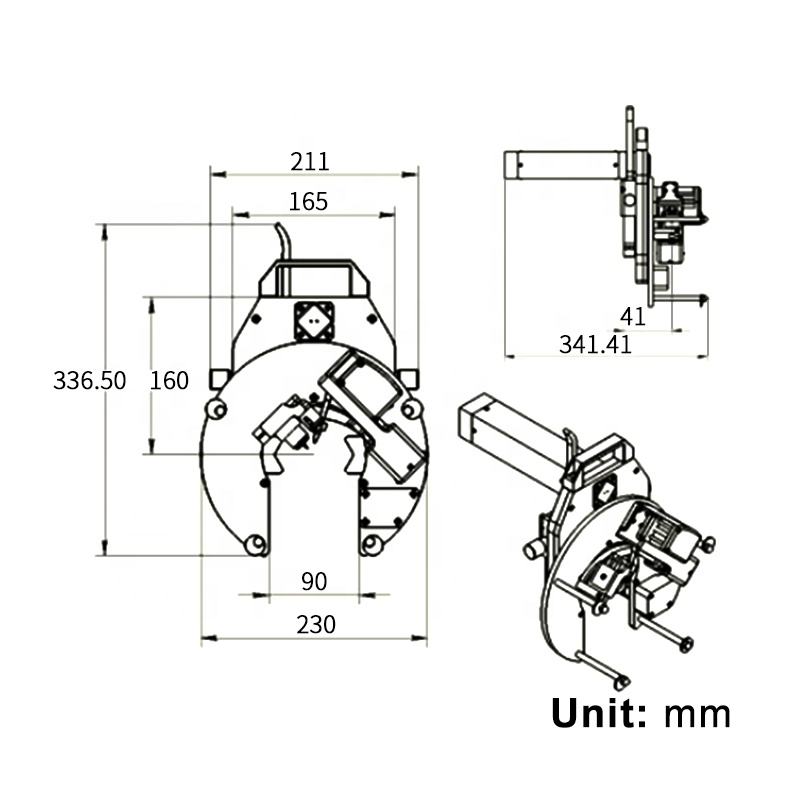

Dimension
|
230*341*339 mm
|
340*367*397 mm
|
590*497*730 mm
|
|
Suitable materials
|
Carbon steel, stainless steel
|
Carbon steel, stainless steel
|
Carbon steel, stainless steel
|
Carbon steel, stainless steel
|
