Product Description:

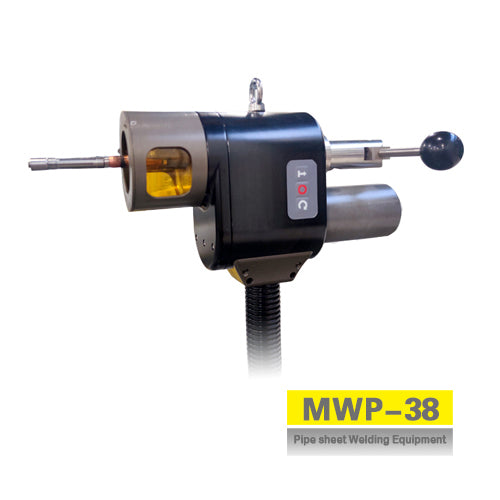

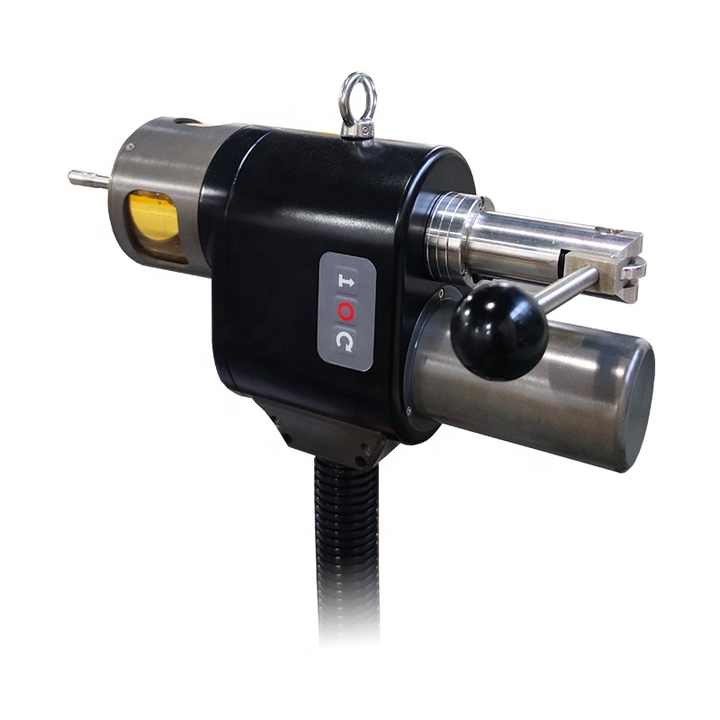

MWP-38 consists of a welding head and a control power supply. The control power supply comes with a cooling water circulation system, which has good cooling effect and is characterized by digitization, easy operation, and high reliability.
MWA-200 programmable welding power source consists of the control system, inverter core, cooling water tank, etc.
Technical Parameters:
Pipe Diameter: ID 6 mm - OD 38.1 mm;
Tungsten Diameter: 2.0 mm, 2.4 mm;
Welding Angle: 0-360° All position;
Voltage: 220 V / 50-60 Hz;
Welding Materials: Carbon steel, stainless steel tube;
Control System: Touch screen PLC control;
Cooling System: Circulating water cooling;
Welding Type: Automatic TIG welding;
Supporting power supply: MWA-200;
Application: Tube To Tube Sheet;
Welding Shield Gas: Argon;
Weight: 3 kg;
